UV laser marking machine suitable for high-end market for ultra-fine processing, such as mobile phones, chargers, data cables, pharmaceutical packages,cosmetics packages, and polymer materials surface marking. Also it can be used for marking of flexible PCB boards, dicing micro-holes and blind holes for silicon wafers, LCDQA code marking, glassware punching, metal surface marking, plastic buttons, electronic components, gifts, communication equipment, building materials, etc.
Email: joy@dumanlaser.com
Item NO. :
DMUV-03Z/08Z/10ZPayment :
L/C D/A D/P T/T Western UnionProduct Origin :
ChinaShipping Port :
XiamenLead Time :

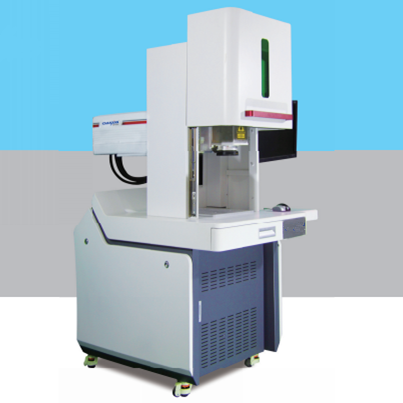

15 daysSuperfine Machining UV Laser Marking Machine For Keyboard Engraving
Application
Suitable for high-end market for ultra-fine processing, such as mobile phones, chargers, data cables, pharmaceutical packages,cosmetics packages, and polymer materials surface marking. Also it can be used for marking of flexible PCB boards, dicing micro-holes and blind holes for silicon wafers, LCDQA code marking, glassware punching, metal surface marking, plastic buttons, electronic components, gifts, communication equipment, building materials, etc.
Features
1. The heat-affected zone is extremely small , avoiding deformation ,damage or charring of the material to be processed and the yield is high .
2. Applied on various materials to make up shortcomings of fiber laser or CO2 laser marking.
3. High photoelectric conversion rate , 355nm output wavelength, beautiful engraving effect , good touch feeling, high anti-counterfeiting effect.
4. Products are widely used in micro-machining , fine engraving of various metal and non-metal film materials.
Specification parameters
|
Model |
DMUV-03Z/08Z/10Z |
|
Process area |
100*100mm (can be customized) |
|
Laser power |
3W/8W/10W Optional |
|
Laser wavelength |
355nm |
|
Laser type |
808nm semiconductor pumping source |
|
Lens |
Laser lens imported from US |
|
Cooling type |
Professional industrial thermostat system |
|
Marking speed |
500 characters/sec |
|
Laser energy control |
0-100% software setting |
|
Minimum font |
0.1 mm |
|
Minimum mark line-width |
0.01 mm |
|
Repeat positioning accuracy |
+-0.001mm |
|
Whole power |
1.5 KW |
|
Power supply |
AC 110V/220V +- 10%, 50/60HZ |
|
Working environment |
Temp 1-40C, Humidity 5-95 % |
|
Dimensions |
900*1000*1600mm |

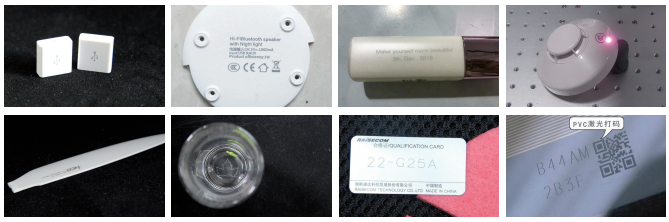

Samples
It is especially suitable for the high-end market of ultra-fine processing, such as food, pharmaceutical packaging material marking, micro-hole drilling, high-speed division of glass materials, and complex pattern cutting of silicon wafers. Email: joy@dumanlaser.com
It is especially suitable for the high-end market of ultra-fine processing, such as food, pharmaceutical packaging material marking, micro-hole drilling, high-speed division of glass materials, and complex pattern cutting of silicon wafers. Email: joy@dumanlaser.com
It is especially suitable for fine marking of sapphire, quartz, ceramics, glass and other superhard materials. Email: joy@dumanlaser.com
It is especially suitable for fine marking of sapphire, quartz, ceramics, glass and other superhard materials. Email: joy@dumanlaser.com
It is especially suitable for fine marking of sapphire, quartz, ceramics, glass and other superhard materials. Please send your inquiry to Email: joy@dumanlaser.com
Laser cutting machineis mainly applicable to all kinds of metal sheets: stainless steel, carbon steel, galvanized sheet, copper sheet, aluminum sheet, various alloy sheets, rare metals, etc. CFA series are widely used for cutting and forming of carbon steel, stainless steel, aluminum, copper and other metal materials. Please send your inquiry to Email:joy@dumanlaser.com
Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high. Please send your inquiry to Email:joy@dumanlaser.com
The use oflaser cuttinghas the advantages of fast cutting speed, high production efficiency, good cutting quality, narrow slit, good material adaptability, no tool wear, no matter it is simple or complex parts, it can be precisely and quickly formed and cut at one time, with a high degree of automation and simple operation. Low labor intensity, no pollution, low noise, low production cost, can save a lot of manpower and material resources, and good economic benefits. Please send your inquiry to Email: joy@dumanlaser.com
