Robotic Laser Hardening System for Special-shaped Workpiece


Laser Hardening is a quenching technology that uses the laser to heat the surface of the material to above the transformation point. With the cooling of the material itself, the austenite is transformed into martensite, thus making the material surface hardened.

Please send you inquiry to Email:joy@dumanlaser.com

  • Item NO. :

    DM-H6000W
  • Payment :

    L/C D/A D/P T/T Western Union
  • Product Origin :

    China
  • Shipping Port :

    Xiamen
  • Lead Time :

    15 days

Robotic Laser Hardening System for Special-shaped Workpiece

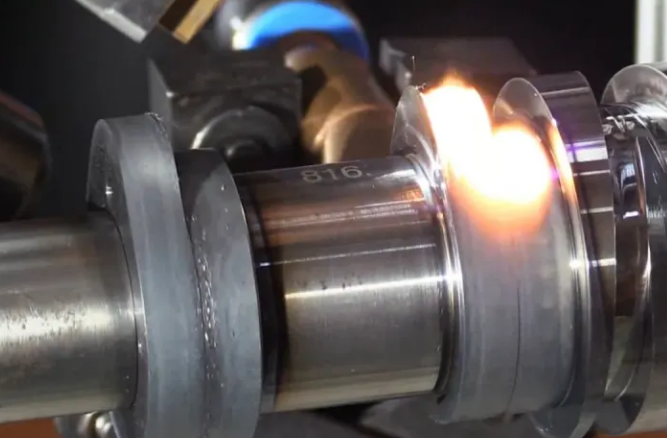

The laser quenching head is adopted, which has high heating and cooling speed, short process cycle, no need for external quenching medium, small workpiece deformation, clean working environment, no need for finishing such as gear grinding after treatment, and the size of the treated gear is not limited by the size of the heat treatment equipment

Advantage

Laser quenching is a clean and fast quenching process with high power density, fast cooling speed and no need for cooling media such as water or oil. Compared with induction quenching, flame quenching and carburizing quenching processes, laser quenching has uniform hardening layer, high hardness (generally 1-3 HRC higher than induction quenching), small workpiece deformation, easy control of heating layer depth and heating track, and easy to realize automation. It is not necessary to design corresponding induction coils according to different part sizes as induction quenching, The processing of large parts does not need to be limited by the furnace size during chemical heat treatment such as carburizing and quenching, so it is gradually replacing the traditional processes such as induction hardening and chemical heat treatment in many industrial fields. Especially important is that the deformation of the workpiece before and after laser quenching can be almost ignored, so it is especially suitable for surface hardening of parts with high precision requirements.



Specification parameters

NO.

Part

Model

Description

Pic

QTY

Brand

1

Laser

CWL-6000W

Continuous fiber laser, maximum power 6000W, adjustable, beam quality <= 5m.MRAD





1

Raycus



Optical fiber system

600Um @20m

QBH interface, core diameter 600um, length 20m

2

Water chiller

HL-6000-QG2

Refrigerating capacity 6000W, dual temperature control, providing cooling water for lasers, processing heads, optical fibers, etc



1

Hanli

3

Laser control system



LJ-6000S

Adjust and control laser power, blowing, laser, powder, etc. With machine tool linkage laser, with monitoring and alarm function



1

Duman

4

Powder feeder

LJ-Z01

Powder volume: 2L glass cylinder

Plourner granularity: 20-280um

Powder speed: 0-6 rpm/cents, stepless speed adjustment

Powder duplicate accuracy: <2%



1

Duman

5

Voltage-stabilized source

VF-45KVA

Provide stable AC power supply for the laser, prevent the damage of the laser caused by the strong fluctuation of the power grid.



1

Duman

6

YaskawaRobot, Japan

GP-25

Degrees of freedom: 6-axis linkage

Load: 25 kg Arm span: 1730mm

Repeated positioning accuracy: ±0.02

Equipped with base, optical fiber support, laser head pendant





1

Yaskawa

7

Laser quenching head

LJ-RF

Multi-water cooling structure design, long continuous working time.





1

Duman

8

OtherAccessories




System coupling accessories

(cable, connector, lens, etc.)





1

Duman


Samples






Related Products
  • Laser Hardening Machine
    High Power 2000w-4000w​ Laser Hardening Machine for Metal Surface Hardness

    It is suitable for welding all kinds of KN95 mask machine welding knives, mask machine welding gear shafts, embossing rollers, embossing shafts, cross-cutting knife sticks, knife pillows, knife molds, folding mask machine molds, rolling die cutters, gear shafts , cam and other standard parts and non-standard parts customized laser quenching equipment. Suitable materials: Cr12MoV, DC53, SKD11, 40Cr, 42CrMo, medium carbon steel and other commonly used die materials. Email: joy@dumanlaser.com

  • Laser Quenching Machine
    Knife Edge Laser Quenching Equipment Laser Surface Heat Treatment Machine

    It is suitable for quenching of various hardware tools, cutting tool edges and tool edges, especially for kitchen martensitic stainless steel edge quenching; suitable materials are carbon steel and chrome steel. Email: joy@dumanlaser.com

  • Laser Hardening Equipment
    Partly Precision Hardening of Mold Laser Quenching Equipment Enhances Metal Wear Resistance

    It is suitable for surface treatment of automobile forming dies, stamping dies, roll forging dies, extrusion dies, injection dies and die casting dies. Applicable materials: all kinds of die steel, carbon steel, chrome steel. Please send your inquiry to Email:joy@dumanlaser.com

  • Automatic Laser Hardening Equipment
    Automatic Laser Hardening Equipment for Blade With Automatic Loading and Unloading

    It is suitable for quenching of various hardware tools, cutting tool edges and tool edges, especially for kitchen martensitic stainless steel edge quenching; suitable materials are carbon steel and chrome steel. Please send your inquiry to Email: joy@dumanlaser.com

  • Metal Surface Hardness System
    Accurate Laser Hardness Equipment For Small Parts Metal Surface Hardening

    It is suitable for precise surface heat treatment of various hardware tools, cutting tool edges, tool edges, valve sealing surfaces, small gears, small molds, gear ring gears, machine tool guides, motor shafts, reducer shafts and other mechanical parts. Please send your inquiry to Email: joy@dumanlaser.com

  • Laser Hardening System

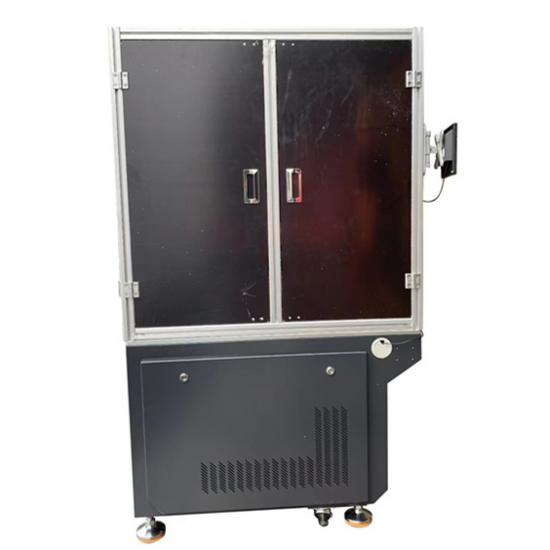

    3000W 4000W 6000W Platform Laser Hardening System
