Laser Obstacle Cleaning Instrument for Foreign Objects in Power Grid


Power grid foreign body laser barrier clearance instrument is mainly used in power grid, rail transit operation and maintenance and other fields. The product has the characteristics of remote clearance and precise aiming.

Please send your inquiry to Email: joy@dumanlaser.com

  • Item NO. :

    DMPG-C
  • Payment :

    L/C D/A D/P T/T Western Union
  • Product Origin :

    China
  • Shipping Port :

    Xiamen
  • Lead Time :

    15 days

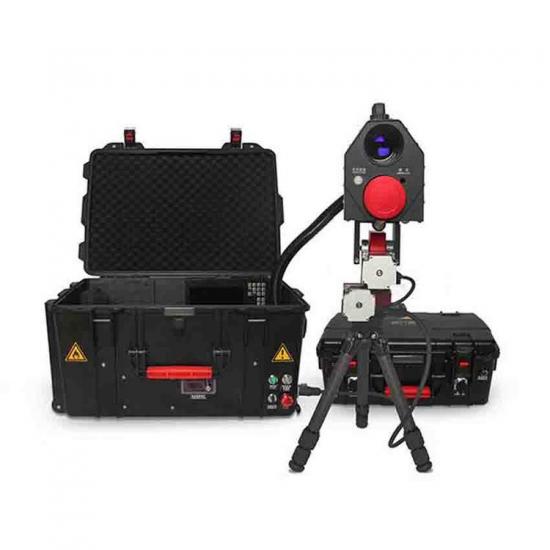

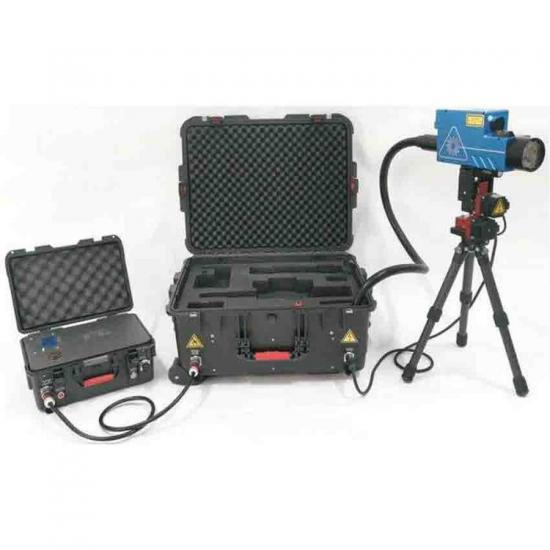

Laser Obstacle Cleaning Instrument for Foreign Objects in Power Grid

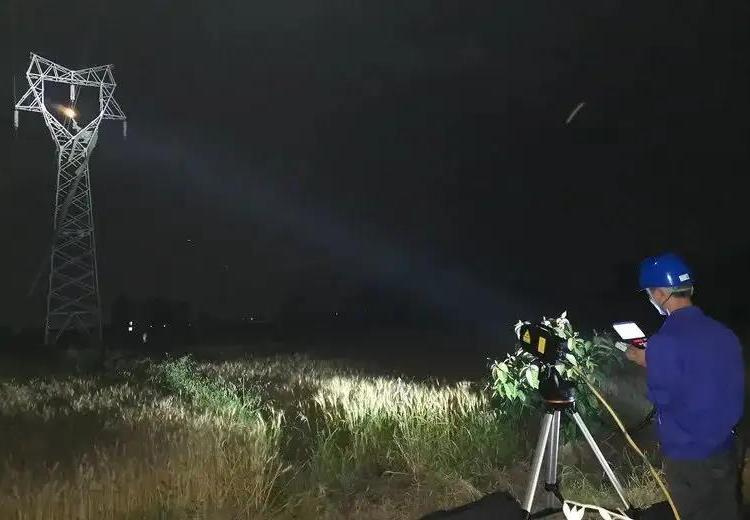

Power grid foreign body laser barrier clearance instrument is mainly used in power grid, rail transit operation and maintenance and other fields. The product has the characteristics of remote clearance and precise aiming. The product can remove the foreign body of the smallest kite line along the high-tension line and rail transit line in the vicious environment of wind and rain. Clearance distance can reach 150 m, aiming accuracy & lt; 0.69 angular seconds. Since its successful development in 2017, the product has been highly praised in the fields of State Grid, High Speed Railway and Metro Operations and Maintenance.


Product features

1. The product range is wide,50-500W, 30-300m effective distance.

2. Safe and fast, fusing foreign matters in 5-10 seconds

3. Adapt to various operating environments: windy, rainy, snowy, night, etc

4. Common foreign matter cleaning, such as wind, fishing line, paper cloth, hemp rope, honeycomb, bird's nest and branches.


Specification

Spe

DME-05B

Wavelength

1080+-10nm

Operating distance

10-300m

Power range

50-500W

Working temp

Continuous operation>1 hour (single battery power supply or generator power supply)

Weight

32KG

Dimension

580*400*400mm

Cooling

Air cooling

Voltage

DC48V

Target observation

Hd all-in-one machine

Display

8 inches

Night vision

Yes

Safety guarantee

Dumping protection, foreign matter intrusion protection

Safety management

Remote authorization, GPS location, Electronic fence

Whether live working is allowed

Yes

Power supply mode

Lithium battery (replaceable)

Working temp

-15℃~50℃

Storage temp

-5℃~70℃

Clearing Objects

Paper, plastic, rubber, nylon, fiber, wood and other non-metallic products

Optional parts

Distance measuring instrument, light compensating flashlight
