High Precision 200W 500W Plastic Laser Welding Machine for Plastic Injection Mold


It is suitable for plastic auto parts, plastic medical equipment, plastic casings of electronic and electrical products, lighting products, etc. It is especially suitable for the welding of sensors and electronic component casings that require reliable sealing.


Please send your inquiry to Email: joy@dumanlaser.com

  • Item NO. :

    DMWP-200W
  • Product Origin :

    China
  • Shipping Port :

    Xiamen
  • Lead Time :

    15 days

High Precision 200W 500W Plastic Laser Welding Machine for Plastic Injection Mold



High-speed plastic laser welding machine is used for welding small flat plastic parts, instead of ultrasonic welding. The quasi-synchronous "laser transmission welding" method is adopted, equipped with a special large-diameter high-speed laser scanning galvanometer, high-power, high-beam quality laser, the laser energy is fully utilized, and the welding efficiency is high. During welding, the material is melted along the entire welding line, and the weldment is welded almost simultaneously along the welding seam, and the laser continuously provides energy until the specified welding requirements are met. A high-precision penetration measurement device can be attached to qualitatively and accurately evaluate the welding process results. The equipment is mainly composed of semiconductor laser, high-speed laser scanning galvanometer, motion control software, and pneumatic welding tooling.


It is suitable for plastic auto parts, plastic medical equipment, plastic casings of electronic and electrical products, lighting products, etc. It is especially suitable for the welding of sensors and electronic component casings that require reliable sealing. Suitable materials: suitable for ABS, PP, PE, PA, PC, PS, PVC, PBT, POM, PET, PMMA and other thermoplastic materials and various modified engineering plastics.


Features

1. The laser beam can be deflected and scanned in the X and Y directions according to the graphic data, the maximum scanning speed can reach 2000mm s, the welding efficiency is high, and the welding reliability is high;

2. During the welding process, the product does not need to move the entire welding wire to plasticize at the same time, and the welding depth is controllable;

3. Optional welding penetration measurement components can accurately control welding penetration and ensure the effectiveness of welding;

4. The digital programming of the scanning track has high precision and flexible control; it is suitable for components within 200 mm x 200 mm;

5. Compared with ultrasonic welding, the mold cost is significantly reduced.


Specification

Laser

150W / 200W / 500W semiconductor laser

Laser wavelength

915nm / 976nm

Welding mode

scanning welding

Focused spot

Beam circularity

Working range

200 * 200mm

Welding line width

0.6-2.0mm

Motion mechanism

special four-axis machine tool

Cooling mode

air cooling / water cooling

Control mode

industrial computer + HL4 axis motion control system, NC model, teaching, graphic file

Optional welding quality monitoring

Penetration measurement assembly

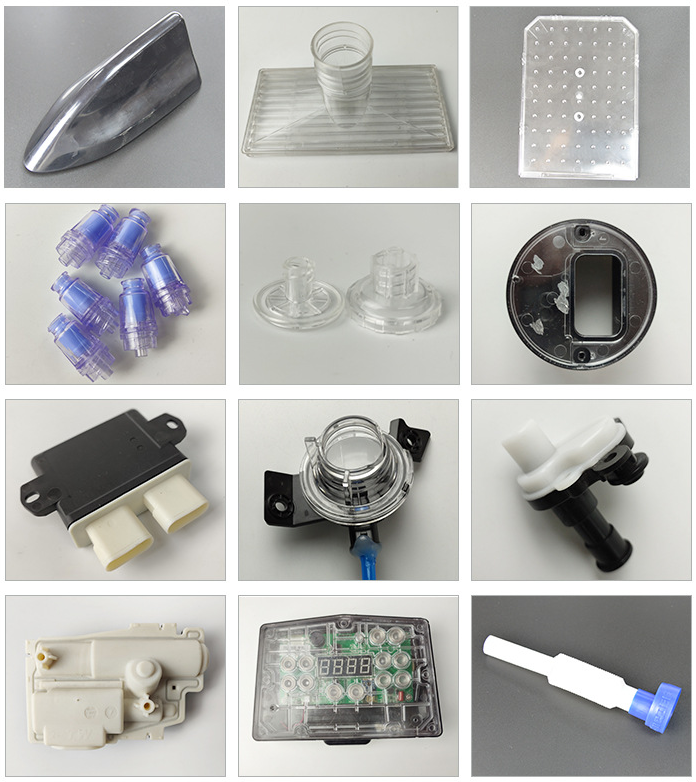

Samples
