lt can be used for 0.1mm-6mm reinforced and non reinforced glass cutting, such as mobile phone glass cover, car glass cover and camera glass cover. 0.1mm-2mm sapphire glass cutting, such as: mobile phone sapphire cover,camera sapphire glass cover, sapphire lamp post(LED lamp post).LCD glass cutting and other optical lens cutting.processing.
Please send your inquiry to Email: joy@dumanlaser.com
Item NO. :
DM6050Payment :
L/C D/A D/P T/T Western UnionProduct Origin :
ChinaShipping Port :
XiamenLead Time :

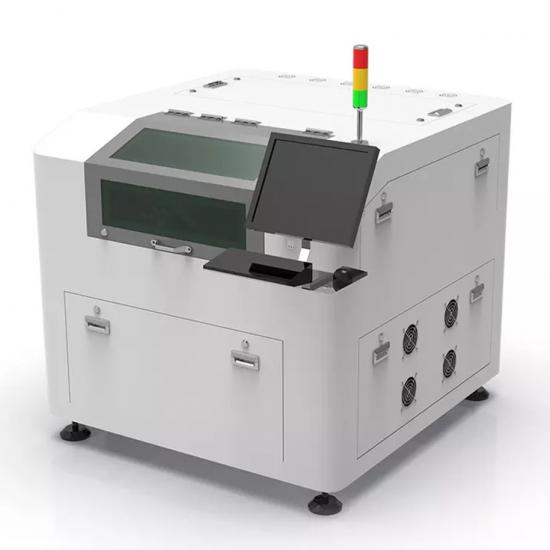

15 daysPicosecond Laser Cutting Machine for Mobile Phone Screen Protector LED LCD Glass

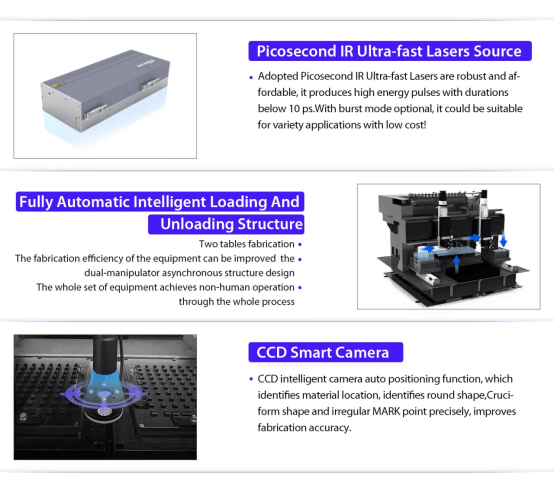

Picosecond cutting machine is a precision cutting machine. It uses the peak power to cut quickly in a short time, so that the material can not have time to conduct heat. It can achieve the cutting of transparent brittle materials without damaging the structure of the material.
Picosecond processing uses small single pulse energy, high frequency processing, fine carving, processing surface is more fine and smooth. There are three power options: 30W, 50W and 70W. The working area of 600mm*500mm is suitable for most cutting scenes. lt can be used for 0.1mm-6mm reinforced and non reinforced glass cutting, such as mobile phone glass cover, car glass cover and camera glass cover. 0.1mm-2mm sapphire glass cutting, such as: mobile phone sapphire cover,camera sapphire glass cover, sapphire lamp post(LED lamp post).LCD glass cutting and other optical lens cutting.processing.
Specification
|
Model |
DM6050 |
|
Laser source power |
30W 50W 70W |
|
Machine structure |
X,Y,Z Marble Table |
|
Max. stroke |
600mm*500mm*100mm |
|
Re-positioning accuracy of motion platform |
±1um |
|
Positioning accuracy of motion platform |
±2um |
|
Supported files |
DXF,PLT,DWG |
|
CCD Vision positioning accuracy |
±3um |
|
Laser source wavelength |
1064nm |
|
Beam quality |
M²＜1.3 |
|
Minimum focus spot |
3um |
|
Cooling type |
Constant temperature water cooling |
|
Processing speed |
0-500mm/s adjustable |
Samples
This CO2 Laser cutting machine uses imported linear guides and high-speed stepping motors and drivers to make the cutting effect smooth and without ripples. Applicable Material:Acrylic; Glass; Leather; MDF; Metal; Paper; Plastic; Plexiglax; Plywood; Rubber; Stone; Wood. Please send your inquiry to Email: joy@dumanlaser.com
This two-in-one machine realizes Fiber & Co2 Laser in one machine, which can cut metal and non-metal materials. Convenience and money saving. Please send your inquiry to Email: joy@dumanlaser.com
Co2 Laser cutting machine mainly suitable for non-metallic materials such as two-color plate, plexiglass,acrylic, wood board, paper, PU leather, cloth, rubber, marble, granite, ceramic tile, shell, etc. Please send your inquiry to Email: joy@dumanlaser.com
This CO2 Laser cutting machine applicable to various materials such as sponge, leather, fabric, non-woven, polypropylene, blended, genuine leather, imitation leather and composite artificial leather. Please send your inquiry to Email: joy@dumanlaser.com
Co2 Laser cutting machine mainly suitable for non-metallic materials such as two-color plate, plexiglass,acrylic, wood board, paper, PU leather, cloth, rubber, marble, granite, ceramic tile, shell, etc. Please send your inquiry to Email: joy@dumanlaser.com
FPC UV Laser Cutting Machine mainly suitable for ultra-precision machining of FPC, PCB, coverlay film, FR4, rigid-flex board cutting and FPC drilling. Please send your inquiry to Email: joy@dumanlaser.com
UV laser depaneling systems are popular for their non-charring cutting process. Using specialized fixtures and machine vision, intricate boards are able to be cut with extremely tight tolerances. Perfect for microelectronics and medical device manufacturers. Please send your inquiry to Email: joy@dumanlaser.com
The use oflaser cuttinghas the advantages of fast cutting speed, high production efficiency, good cutting quality, narrow slit, good material adaptability, no tool wear, no matter it is simple or complex parts, it can be precisely and quickly formed and cut at one time, with a high degree of automation and simple operation. Low labor intensity, no pollution, low noise, low production cost, can save a lot of manpower and material resources, and good economic benefits. Please send your inquiry to Email: joy@dumanlaser.com
