Ball Valve Hard Sealing Laser Cladding Machine


Laser Cladding Machines widely used in mining, coal, petroleum, metallurgical industry, cement machinery industry, electrical machinery industry, construction machinery, auto repair industry, printing industry, paper industry and other industries.

Please send you inquiry to Email: joy@dumanlaser.com

  • Item NO. :

    DM-CB4000W

  • Payment :

    L/C D/A D/P T/T Western Union

  • Product Origin :

    China

  • Shipping Port :

    Xiamen

  • Lead Time :

    15 days

Ball Valve Hard Sealing Laser Cladding Machine


The special laser cladding equipment for ball valve hard sealing is a special laser processing equipment for hardfacing of various ball valve hard sealing surfaces. The orthogonal double rotation mechanism is adopted to simplify the machining path of the sphere and greatly improve the stability of the machining process; With high-speed cladding technology, the cladding layer has a very high flatness, and the workpiece can be directly ground after cladding; The control software has modeling process modules such as ball failure, gyration and constant velocity spiral. The equipment is mainly composed of high-power laser, laser cladding head, high-speed coaxial powder feeder, powder feeder and C-type positioner.


Application area

It is suitable for laser cladding of hard sealing surfaces of various valve seats, butterfly valve bodies and spheres. It can be used to cladding 304/316/Fe Cr B Si and other iron base alloys, Ni55/Ni60/Inconel625 and other nickel base alloys, STL6/STL12/STL21 and other cobalt base alloys, and nickel base/iron base metal ceramic alloys.


Characteristic

1. The orthogonal double rotation mechanism is adopted to simplify the machining path of the sphere and greatly improve the stability of the machining process.

2. The special spherical defect process module is easy to operate, and spherical surface processing can be realized by inputting simple parameters.

3. High speed cladding technology, the deposition efficiency reaches 0.4 square meters per hour;

4. The sealing surface has good strength and toughness: the structure is refined, and the strength and toughness are also taken into account. With the same hardness, it has better wear resistance;

5. The cladding layer has extremely high flatness and can be directly ground.


Specification

Laser

Semiconductor laser/fiber laser

Laser power

4000-12000W

Wavelength

900-1100nm

Focused spot

Circular spot/rectangular spot

Powder feeding way

Coaxial negative ballast gas delivery

Movement mechanism

Specialfour axis truss machine tool

Cooling method

Water cooling 20-25℃,

Intelligent dual temperature and dual control

Control way

IPC+HL4 axis motion control system, NC model

Processing diameter

DN16-DN80, DN75-DN150, DN150-DN250

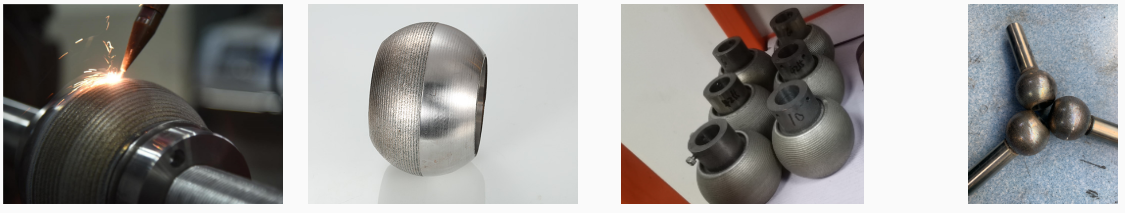

Sample
