Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries.
Please send your inquiry to Email: joy@dumanlaser.com
Item NO. :
DMW-2000WPayment :
L/C D/A D/P T/T Western UnionProduct Origin :
ChinaShipping Port :
XiamenLead Time :

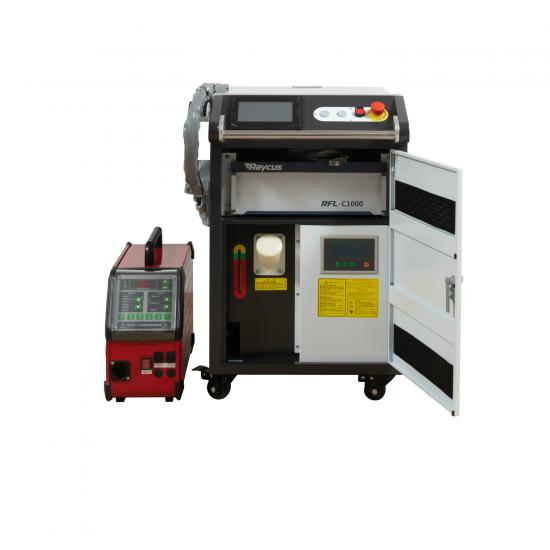

15 daysHandheld 1000W 1500W 2000W 3000W Laser Welder Metal Laser Welding Machine
Handheld Laser Welding Machine is equipped with Top brand laser, wobble welding joint, control system, chiller, protective lens etc. The operation console is provided with an optical fiber suspension device and a welding joint placement box. The machine is of integrated design, compact and beautiful structure.
Features and advantages
1. Handheld laser welding is easy to learn, no welder certificate or professional welder is required.
2. Laser welding does not require a mask and does not belong to electric solitary radiation, but laser protective glasses are required.
3. The welding seam is smooth and beautiful, no need for grinding or a small amount of grinding work.
4. By controlling the laser energy, the welding is not deformed, or the deformation is very small.
5. Low cost of use, power consumption, gas consumption, lenses, etc. are all low-cost consumption.
6. The length of the optical fiber is 10 meters, which can be used for long-distance welding of large workpieces.
7. Various welding processes, including spot welding, seam welding and stitch welding.
8. Wire welding of stainless steel, carbon steel and galvanized sheet, the normal speed is 0.7-1.0 m/min.
9. Aluminum alloy plus aluminum wire welding, the normal speed is 1.2m-2m/min.
10. At present, it is not suitable for large penetration welding, and the penetration depth of laser welding is generally less than 4mm.
11. Not suitable for large gap welding, the gap is required to be within 1.2mm.
12. The laser welding scar is small, which is not suitable for applications that require high and wide welding scars.
|
|
Tig Welding |
Laser Welding |
|
Heat |
Very high |
Very low |
|
Deformation |
Easy to deform |
No deformation |
|
Processing time |
Long |
Short |
|
Welding Workload |
2 professional welders |
1 operator |
|
Exterior |
Unsightly, need polishing |
Smooth and beautiful, polishing free |
|
Welding spot |
Large welding spot |
Fine welding spot, adjustable |
|
Perforation |
Easy to pierce |
Not easy to perforate, controllable |
|
Protective gas |
Need argon or N |
Need argon or N |
|
Precision |
General |
Precision |
|
Power consumption |
High |
Low |
|
Safety |
Ultraviolet light, radiation |
Radiation-free |
Specification parameters
|
Mode |
DMW-1000W |
DMW-1500W |
DMW-2000W |
DMW-3000W |
|
Max laser power |
1000W |
1500W |
2000W |
3000W |
|
Depth of fusion（SS) |
2. 68mm |
3. 59mm |
4. 57mm |
6.50mm |
|
Depth of fusion（CS) |
2. 06mm |
2. 77mm |
3. 59mm |
4.39mm |
|
Depth of fusion（AL) |
2 mm |
3 mm |
4mm |
5mm |
|
auto solder wire feeding |
Φ 0. 8-1.2 |
Φ 0. 8-1. 6 |
Φ 0. 8-1. 6 |
Φ 0. 8-1. 6 |
|
Total power |
3KW |
4.5KW |
6KW |
6KW |
|
Cooling method |
Water cooling |
|||
|
Power supply |
220V |
22OV or 380V |
380V |
380V |
|
Argon or nitrogen protection (customer provided) |
20L/min |
20L/min |
20L/min |
20L/min |
|
Dimension |
0.6*1.1*1.1m |
0.6*1.1*1.1m |
0.6*1.1*1.1m |
0.8*1.1*1.1m |
|
Weight |
150kg |
170kg |
185kg |
200kg |
Samples
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
It is widely applied to many fields, such as 3C, medical devices, automobiles, railways, ships, aviation, air conditioning condensers, home decoration, elevators, power batteries, etc. Please send your inquiry to Email: joy@dumanlaser.com
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
The use oflaser cuttinghas the advantages of fast cutting speed, high production efficiency, good cutting quality, narrow slit, good material adaptability, no tool wear, no matter it is simple or complex parts, it can be precisely and quickly formed and cut at one time, with a high degree of automation and simple operation. Low labor intensity, no pollution, low noise, low production cost, can save a lot of manpower and material resources, and good economic benefits. Please send your inquiry to Email: joy@dumanlaser.com
3D Dynamic marking adopts pre-focusing optical mode and larger X and Y axis deflection lenses, so it can allow larger laser spot, better focusing accuracy and better energy effect. The marking range can be wider. Please send your inquiry to Email: joy@dumanlaser.com
Laser cutting machineis mainly applicable to all kinds of metal sheets: stainless steel, carbon steel, galvanized sheet, copper sheet, aluminum sheet, various alloy sheets, rare metals, etc. CFA series are widely used for cutting and forming of carbon steel, stainless steel, aluminum, copper and other metal materials. Please send your inquiry to Email:joy@dumanlaser.com
