Platform XYZC Four Axis Automatic Laser Welding System


Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries.

Please send your inquiry to Email: joy@dumanlaser.com

  • Item NO. :

    DMHY- C1000W
  • Payment :

    L/C D/A D/P T/T Western Union
  • Product Origin :

    China
  • Shipping Port :

    Xiamen
  • Lead Time :

    15 days

Platform XYZC Four Axis Automatic Laser Welding System

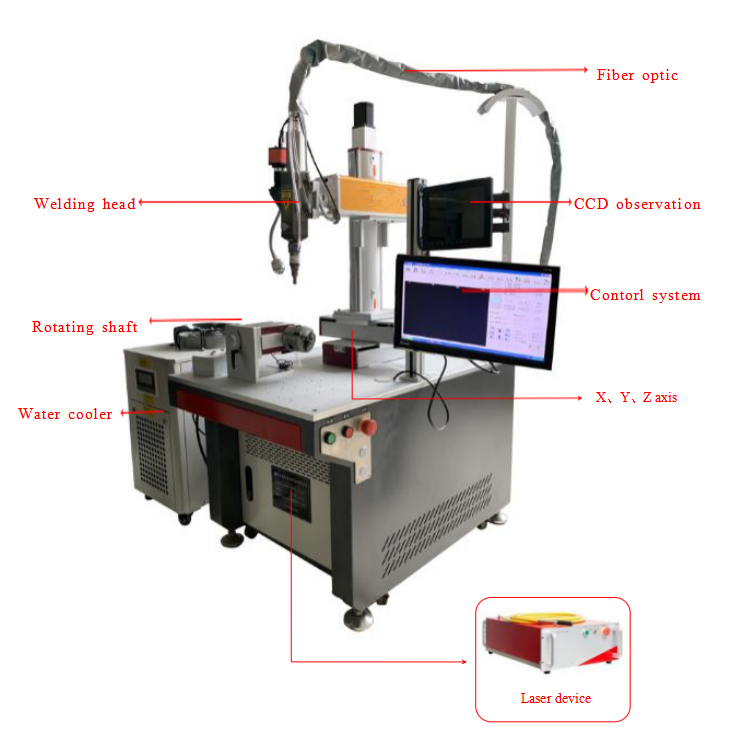

This welding system consists of: 1000W fiber continuous laser, laser control system, welding platform, X/Y/Z/C four-axis linkage motion double-station system (X/Y/Z three-axis are used to adjust the position and angle of the welding gun, C The shaft double station is used for product spin welding), laser special cooling system and other components.

Four Axis Laser Welding System




Features and advantages

1. Using continuous laser, the lifespan can reach 100,000 hours;

2. The continuous fiber laser is maintenance-free, high stability and low cost;

3. The welding seam is thin, the depth is large, the precision is high, and the welding seam is smooth and beautiful;

4. The laser energy and welding speed are controlled by software, so that the welding is not deformed or the deformation is extremely small;

5. Laser welding is non-contact welding, which can easily realize welding in hidden areas;

6. Various welding processes, including spot welding, seam welding and stitch welding;

7. High welding efficiency, the normal welding speed is greater than 1.0 m/min;

8. Suitable for most metal materials, and difficult-to-weld materials such as aluminum and copper can also be laser welded.


 Parameters of each models

Model

DMHY-

C1000W

DMHY-

C1500W

DMHY-

C2000W

DMHY-

3000W

Max laser power

1000W

1500W

2000W

3000W

Depth of fusion(SS,1m/min)

2.68mm

3.59mm

4.57mm

6.87mm

Depth of fusion(CS,1m/min)

2.06mm

2.77mm

3.59mm

4.79mm

Depth of fusion(AL,1m/min)

2mm

3mm

4mm

4mm

Depth of fusion(Cu,1m/min)

0.3mm

0.4mm

0.5mm

1mm

Total power

≤3KW

≤4.5KW

≤6KW

≤9KW

Cooling method

Water cooling

Voltage

220V

220V or380V

380V

380V

Argon or nitrogen protection (customer provided)

15L/min



Samples
