Mold Repair Laser Welding Machine For Hardware Products, Auto Parts, Glasses, Watches, Jewelry Welding


It is widely used in mobile phone battery shell, electronic components, mobile phone communication, precision equipment, hardware products, auto parts, glasses, watches, jewelry, medical equipment, insulation Cup, wine pot, kitchen and other industries.

Please send your inquiry to Email: joy@dumanlaser.com

  • Item NO. :

    DMHY-WM200
  • Payment :

    L/C D/A D/P T/T Western Union
  • Product Origin :

    China
  • Shipping Port :

    Xiamen
  • Lead Time :

    15 days

Mold Repair Laser Welding Machine For Hardware Products, Auto Parts, Glasses, Watches, Jewelry Welding

It is widely used in mobile phone battery shell, electronic components, mobile phone communication, precision equipment, hardware products, auto parts, glasses, watches, jewelry, medical equipment, insulation Cup, wine pot, kitchen and other industries.


Advantages of laser welding

Laser welding is to irradiate the laser beam with high energy density on the two parts of materials, so that the parts are heated and melted, then cooled and solidified. Compared with the traditional welding process, laser welding has the following advantages:


A. No contact machining, no external force effect on welding parts.

B. The laser energy is highly concentrated, the thermal effect is small, and the thermal deformation is small.

C. It can weld high melting point, refractory and refractory metals, such as titanium alloy, aluminum alloy, etc. It can realize welding between some different materials.

D. The welding process has no pollution to the environment, can be directly welded in the air, and the process is simple.

E. The welding spot is small, the welding seam is narrow, neat and beautiful, and there is no need to deal with or simple process after welding. The structure of the weld is uniform, the porosity is few, the defect is few, and the parent material is miscellaneous. The mechanical strength of the weld is often higher than that of the parent material. Laser welding is superior to conventional welding in mechanical properties, corrosion resistance and electromagnetic properties.

F. The laser can be precisely controlled, the focus light point is small, the high-precision positioning can be realized, and the precision machining can be realized.

G. Easy to cooperate with CNC system, manipulator and robot to realize automatic welding and improve production efficiency.


Technical Parameters

Model

DMHY-WM200

DMHY-WM400

Max. Power

200W

400W

Max. energy of single

90J

110J

Laser lengthen

1.06µm

1.06µm

Weld Frequency

<=50HZ

<=200HZ

Weld Depth

0.1-3.0mm

0.1-4.0mm

The pulse width

0.5-20ms

0.5-20ms

Weld Wire Dimension

0.2-0.8mm

0.2-0.8mm

Position System

CCD or Microscope

CCD or Microscope

Std. Working travel

300*200mm

300*200mm

Powder requirement

220V/50Hz/40A

380V/50Hz/40A

Cooling Method

Water Chiller

Water Chiller

Overall consume power

6KW

8KW

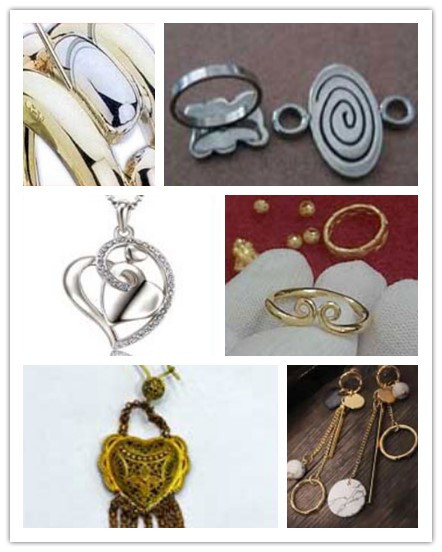

Samples
