Fiber Laser Marking Machine with Protective Cover


Fiber laser marking machine is suitable for most metal materials, such as gold, silver, copper, alloy, aluminum, steel, stainless steel and some non-metal materials, such as plastics (engineering plastics and hard plastics, etc.) electroplating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics, etc.

Email: joy@dumanlaser.com

  • Item NO. :

    DMM-50W
  • Payment :

    L/C D/A D/P T/T Western Union
  • Product Origin :

    China
  • Shipping Port :

    Xiamen
  • Lead Time :

    15 days

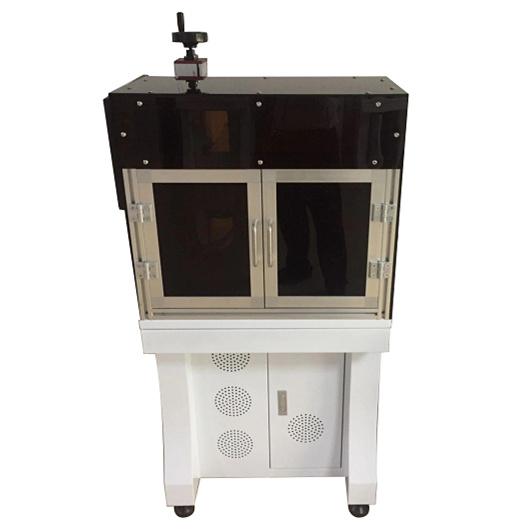

Fiber Laser Marking Machine with Protective Cover


Compared with the traditional mechanical marking, chemical corrosion, screen printing, printing ink etc., the Fiber laser marking machine carving has the advantages of low cost, high flexibility, environmental protection; It’s easy to control and operation by the computer system. The laser beam on the workpiece surface generated by the strong permanent marker is its outstanding characteristic.


Detailed configuration parameters

Model

DMFB-20W/30W/50W/60W/100W

Average out power

20W or 30W or 50W or 60W or 100W

Laser wavelength

1.06µm

Laser frequency

20-80kh or 50-100khz

Standard Marking range

180*180mm

Optional Marking range

70mm*70mm /300mm*300mm /500*500mm

Marking depth

<=0.3mm

Marking speed

<=7000mm/s

Minimum line width

0.01mm

Repeatability accuracy

±0.002mm

Electricity requirement

220V/50Hz/60Hz

the whole Power consumption

500W-800W




Samples
