Backpack Mini Portable Laser Cleaning Rust Removal Machine


Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high.

Email: joy@dumanlaser.com

  • Item NO. :

    DMC-50W
  • Payment :

    L/C D/A D/P T/T Western Union
  • Product Origin :

    China
  • Shipping Port :

    Xiamen
  • Lead Time :

    15 days

Backpack Mini Portable Laser Cleaning Rust Removal Machine


Laser cleaning technology is the process of using laser beams to irradiate the surface of the workpiece to peel off or vaporize the surface dirt, rust coating, etc., and clean the surface of the workpiece to achieve the purpose. The thermal effect and vibration effect of the laser are more recognized.



The process of laser cleaning relies on the characteristics of the light pulse generated by the laser, based on the photophysical reaction caused by the interaction between the high-intensity beam, the short pulse laser, and the contamination layer. The physical principles can be summarized as follows:

1. The light beam emitted by the laser is absorbed by the contamination layer on the surface to be treated.

2. Absorption of large energy forms a rapidly expanding plasma (a highly ionized unstable gas), which generates shock waves.

3. The shock wave turns pollutants into fragments and is removed.

4. The light pulse width must be short enough to avoid heat accumulation that damages the surface to be processed.

5. Experiments show that when there are oxides on the metal surface, plasma is generated on the metal surface.



Machine Application

Application

Rust Removal

Oxide Removal

Molding Cleaning

Surface Preparation

Coatings Removal

Weld Pre-treatment

Gluing Pre-treatment

Removal of Oil and Grease

Paint Removal

Surface Cleaning

Stain Removal

Surface Roughening

Tool Cleaning

Historic Restoration

Selective Paint Removal

Precise Cleaning


Product advantages

1. Simple operation: one-button operation, it can be used after power on.

2. Lightweight: suitable for high-altitude operations, outdoor operations, narrow spaces and other parts that traditional laser cleaning machines cannot reach, as well as any other places where operations are required.

3. Mobile and Portable: The device is equipped with shoulder straps and pulleys, which is perfect for carrying around.

4. Efficient cleaning: high efficiency and time saving.

5. Non-contact: cleaning without grinding, non-contact, and will not cause damage to the substrate.

6. No pollution: no chemicals are needed for cleaning, and there is no pollution to the environment.

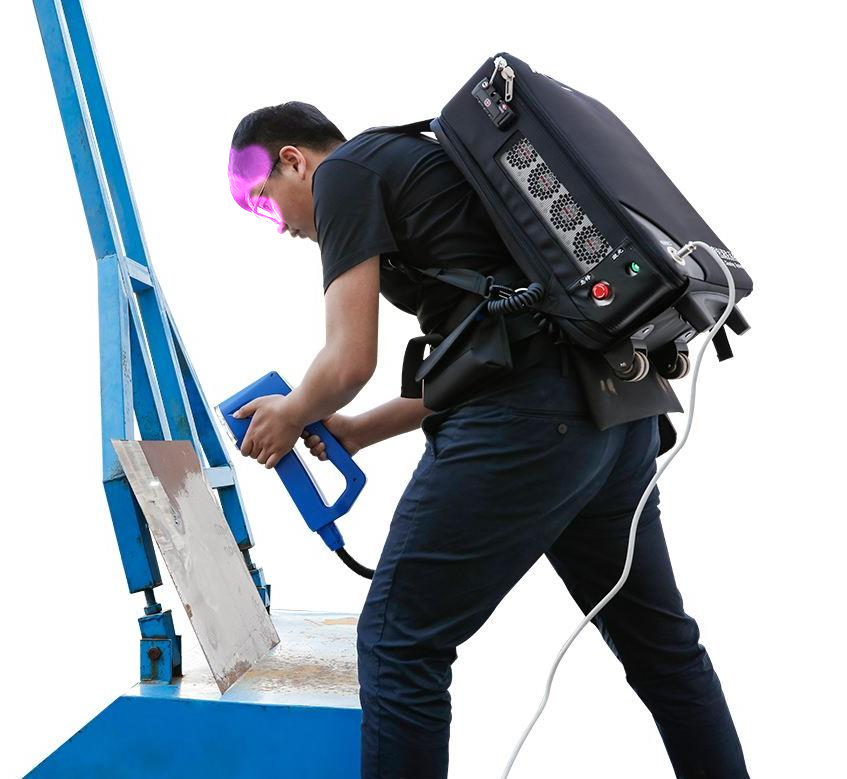

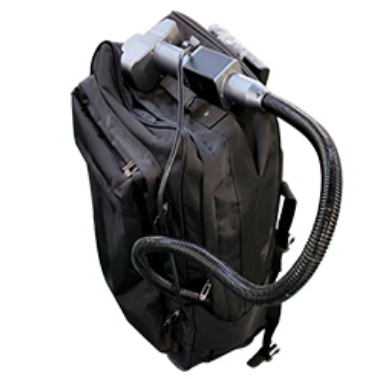

backpack laser cleaning machine




Specification parameter

Equipment model

DMC-50

DMC-100

DMC-200

DMC-500

DMC-1000

Laser working medium

Yb-doped fiber

Laser power

50W

100W

200W

500W

1000W

Laser wavelength

1064nm

Pulse frequency

20-100KHz

20-100KHz

20-200KHz

20-50KHz

20-50KHz

Cooling method

Air cooling

Air cooling

Water cooling

Water cooling

Water cooling

Dimension

760mmX780X790mm

1100x950x700mm

Total Weight

36kg

60kg

65kg

130kg(Including Water tank)

 140kg

Total power

350W

600W

1000W

1800W

2000W

Scan width

10-60mm

Type

Hand/ LX controller

Working temperature

5-40℃
